Detailed Description

         RESTSoft : Software for Rare Event Searches with TPCs

         TRestDetectorSignalEvent.h

         Event class to store DAQ events either from simulation and
         acquisition

         sept 2015:   First concept
             Created as part of the conceptualization of existing REST
             software.
             JuanAn Garcia

TRestDetectorSignalEvent stores the detector-channel signals associated with one REST event.

A TRestDetectorSignalEvent is a collection of TRestDetectorSignal objects. Each TRestDetectorSignal corresponds to one readout channel, identified by its signal ID, and stores the signal as time-charge points in physical coordinates. The event object groups those channel signals and provides event-level operations such as signal lookup, drawing, sorting, integrals, and global time or amplitude limits.

This event type is usually found after the raw ADC representation has been converted into detector-level signals, or after simulated detector hits have been projected onto a readout. It sits between TRestRawSignalEvent, which keeps ADC samples, and TRestDetectorHitsEvent, which stores reconstructed or simulated spatial hits. Processes such as TRestDetectorHitsToSignalProcess, TRestRawToDetectorSignalProcess, and TRestDetectorSignalToHitsProcess use this class as the detector-signal representation.

A minimal inspection from a restRoot session or ROOT macro looks like:

TRestRun run("detectorSignals.root");
run.GetEntry(0);

auto signalEvent = run.GetInputEvent<TRestDetectorSignalEvent>();
std::cout << "Signals in event: " << signalEvent->GetNumberOfSignals()
          << std::endl;

auto signal = signalEvent->GetSignalById(12);
if (signal != nullptr) {
    std::cout << "Signal 12 integral: " << signal->GetIntegral()
              << std::endl;
}

signalEvent->DrawEvent();

Signals can be accessed by collection index with GetSignal(), or by channel identifier with GetSignalById(). Analysis code should normally use GetSignalById() when referring to a physical readout channel, because the internal ordering of the signal collection is not the channel mapping.

AddChargeToSignal() is a convenient way to fill an event when several charge contributions may arrive at the same channel and time. It creates the corresponding TRestDetectorSignal if the signal ID is not yet present, and otherwise accumulates the charge in the existing signal.

DrawEvent() displays all contained TRestDetectorSignal objects in a TMultiGraph, with time on the horizontal axis and amplitude on the vertical axis.

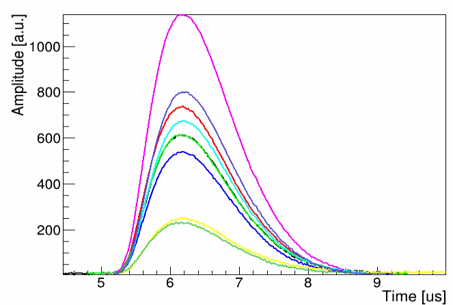

The following figure shows a detector signal event drawn with DrawEvent(). Each trace corresponds to one TRestDetectorSignal in the event, with the horizontal axis expressed in physical time.

Detector signal event drawn with DrawEvent

RESTsoft - Software for Rare Event Searches with TPCs

History of developments:

2015-September: First concept. JuanAn Garcia/Javier Galan

2016-February: Added titles to axis in DrawGraph using TMultiGraph. Javier Gracia

Author: JuanAn Garcia; Javier Galan

Definition at line 32 of file TRestDetectorSignalEvent.h.

#include <TRestDetectorSignalEvent.h>

Inheritance diagram for TRestDetectorSignalEvent:

Public Member Functions
void	AddChargeToSignal (Int_t signalID, Double_t time, Double_t charge)

void	AddSignal (const TRestDetectorSignal &signal)

TPad *	DrawEvent (const TString &option="")
	Draw the event. More...

Double_t	GetIntegral (Int_t startBin=0, Int_t endBin=0)

Double_t	GetIntegralWithTime (Double_t startTime, Double_t endTime)

Double_t	GetMaxTime ()

Double_t	GetMaxValue ()

Double_t	GetMinTime ()

Double_t	GetMinValue ()

Int_t	GetNumberOfSignals () const

TRestDetectorSignal *	GetSignal (Int_t n)

TRestDetectorSignal *	GetSignalById (Int_t sid)

Int_t	GetSignalIndex (Int_t signalID)

void	Initialize ()

void	PrintEvent ()

void	RemoveSignalWithId (Int_t sId)

Bool_t	signalIDExists (Int_t sID)

void	SortSignals ()

Public Member Functions inherited from TRestEvent
virtual void	CloneTo (TRestEvent *target)
	Clone the content of this TRestEvent object to another. More...

virtual TPad *	DrawEvent (const TString &option="")
	Draw the event. More...

Int_t	GetID () const

Int_t	GetRunOrigin () const

TString	GetSubEventTag () const

Int_t	GetSubID () const

Int_t	GetSubRunOrigin () const

Double_t	GetTime () const

TTimeStamp	GetTimeStamp () const

virtual void	Initialize ()=0

virtual void	InitializeReferences (TRestRun *run)
	Initialize dynamical references when loading the event from a root file. More...

virtual void	InitializeWithMetadata (TRestRun *run)

Bool_t	isOk () const

virtual void	PrintEvent () const

void	SetEventInfo (TRestEvent *eve)

void	SetID (Int_t id)

void	SetOK (Bool_t state)

void	SetRunOrigin (Int_t run_origin)

void	SetState (Bool_t state)

void	SetSubEventTag (const TString &tag)

void	SetSubID (Int_t id)

void	SetSubRunOrigin (Int_t sub_run_origin)

void	SetTime (Double_t seconds, Double_t nanoseconds)

void	SetTime (Double_t time)

void	SetTimeStamp (const TTimeStamp &time)

	TRestEvent ()

virtual	~TRestEvent ()

Protected Attributes
Double_t	fMaxTime

Double_t	fMaxValue

Double_t	fMinTime

Double_t	fMinValue

std::vector< TRestDetectorSignal >	fSignal

Protected Attributes inherited from TRestEvent
Int_t	fEventID
	Event identification number. More...

TTimeStamp	fEventTime
	Absolute event time. More...

Bool_t	fOk
	Flag to be used by processes to define an event status. fOk=true is the default. More...

TPad *	fPad

TRestRun *	fRun = nullptr

Int_t	fRunOrigin
	Run ID number of the event. More...

Int_t	fSubEventID
	Sub-Event identification number. More...

TString	fSubEventTag
	A short length label to identify the sub-Event. More...

Int_t	fSubRunOrigin
	Sub-run ID number of the event. More...

Private Member Functions
void	SetMaxAndMin ()

Additional Inherited Members
Protected Member Functions inherited from TRestEvent
void	RestartPad (Int_t nElements)

Constructor & Destructor Documentation

◆ TRestDetectorSignalEvent()

TRestDetectorSignalEvent::TRestDetectorSignalEvent ( )

Definition at line 88 of file TRestDetectorSignalEvent.cxx.

◆ ~TRestDetectorSignalEvent()

TRestDetectorSignalEvent::~TRestDetectorSignalEvent ( )

virtual

Definition at line 93 of file TRestDetectorSignalEvent.cxx.

Member Function Documentation

◆ AddChargeToSignal()

void TRestDetectorSignalEvent::AddChargeToSignal	(	Int_t	signalID,
		Double_t	time,
		Double_t	charge
	)

Definition at line 150 of file TRestDetectorSignalEvent.cxx.

◆ AddSignal()

void TRestDetectorSignalEvent::AddSignal ( const TRestDetectorSignal & signal )

Definition at line 107 of file TRestDetectorSignalEvent.cxx.

◆ DrawEvent()

TPad * TRestDetectorSignalEvent::DrawEvent ( const TString & option = "" )

virtual

Draw the event.

To be implemented in the derived class

Reimplemented from TRestEvent.

Definition at line 218 of file TRestDetectorSignalEvent.cxx.

◆ GetIntegral()

Double_t TRestDetectorSignalEvent::GetIntegral	(	Int_t	startBin = `0`,
		Int_t	endBin = `0`
	)

Definition at line 135 of file TRestDetectorSignalEvent.cxx.

◆ GetIntegralWithTime()

Double_t TRestDetectorSignalEvent::GetIntegralWithTime	(	Double_t	startTime,
		Double_t	endTime
	)

Definition at line 143 of file TRestDetectorSignalEvent.cxx.

◆ GetMaxTime()

Double_t TRestDetectorSignalEvent::GetMaxTime ( )

Definition at line 207 of file TRestDetectorSignalEvent.cxx.

◆ GetMaxValue()

Double_t TRestDetectorSignalEvent::GetMaxValue ( )

Definition at line 187 of file TRestDetectorSignalEvent.cxx.

◆ GetMinTime()

Double_t TRestDetectorSignalEvent::GetMinTime ( )

Definition at line 197 of file TRestDetectorSignalEvent.cxx.

◆ GetMinValue()

Double_t TRestDetectorSignalEvent::GetMinValue ( )

Definition at line 192 of file TRestDetectorSignalEvent.cxx.

◆ GetNumberOfSignals()

Int_t TRestDetectorSignalEvent::GetNumberOfSignals ( ) const

inline

Definition at line 65 of file TRestDetectorSignalEvent.h.

◆ GetSignal()

TRestDetectorSignal * TRestDetectorSignalEvent::GetSignal ( Int_t n )

inline

Definition at line 66 of file TRestDetectorSignalEvent.h.

◆ GetSignalById()

TRestDetectorSignal * TRestDetectorSignalEvent::GetSignalById ( Int_t sid )

inline

Definition at line 68 of file TRestDetectorSignalEvent.h.

◆ GetSignalIndex()

Int_t TRestDetectorSignalEvent::GetSignalIndex ( Int_t signalID )

Definition at line 129 of file TRestDetectorSignalEvent.cxx.

◆ Initialize()

void TRestDetectorSignalEvent::Initialize ( )

virtual

Run to initialize event data. To be re-implemented in derived class, you may want to call the base class at the end of the re-implemented, by calling TRestEvent::Initialize();

Implements TRestEvent.

Definition at line 97 of file TRestDetectorSignalEvent.cxx.

◆ PrintEvent()

void TRestDetectorSignalEvent::PrintEvent ( )

Definition at line 162 of file TRestDetectorSignalEvent.cxx.

◆ RemoveSignalWithId()

void TRestDetectorSignalEvent::RemoveSignalWithId ( Int_t sId )

Definition at line 117 of file TRestDetectorSignalEvent.cxx.

◆ SetMaxAndMin()

void TRestDetectorSignalEvent::SetMaxAndMin ( )

private

Definition at line 172 of file TRestDetectorSignalEvent.cxx.

◆ signalIDExists()

Bool_t TRestDetectorSignalEvent::signalIDExists ( Int_t sID )

inline

Definition at line 45 of file TRestDetectorSignalEvent.h.

◆ SortSignals()

void TRestDetectorSignalEvent::SortSignals ( )

inline

Definition at line 52 of file TRestDetectorSignalEvent.h.

Field Documentation

◆ fMaxTime

Double_t TRestDetectorSignalEvent::fMaxTime

protected

Definition at line 35 of file TRestDetectorSignalEvent.h.

◆ fMaxValue

Double_t TRestDetectorSignalEvent::fMaxValue

protected

Definition at line 37 of file TRestDetectorSignalEvent.h.

◆ fMinTime

Double_t TRestDetectorSignalEvent::fMinTime

protected

Definition at line 34 of file TRestDetectorSignalEvent.h.

◆ fMinValue

Double_t TRestDetectorSignalEvent::fMinValue

protected

Definition at line 36 of file TRestDetectorSignalEvent.h.

◆ fSignal

std::vector<TRestDetectorSignal> TRestDetectorSignalEvent::fSignal

protected

Definition at line 39 of file TRestDetectorSignalEvent.h.
