Detailed Description

An event container for time rawdata signals with fixed length.

The TRestRawSignalEvent ...

DOCUMENTATION TO BE WRITTEN (main description, figures, methods, data members)

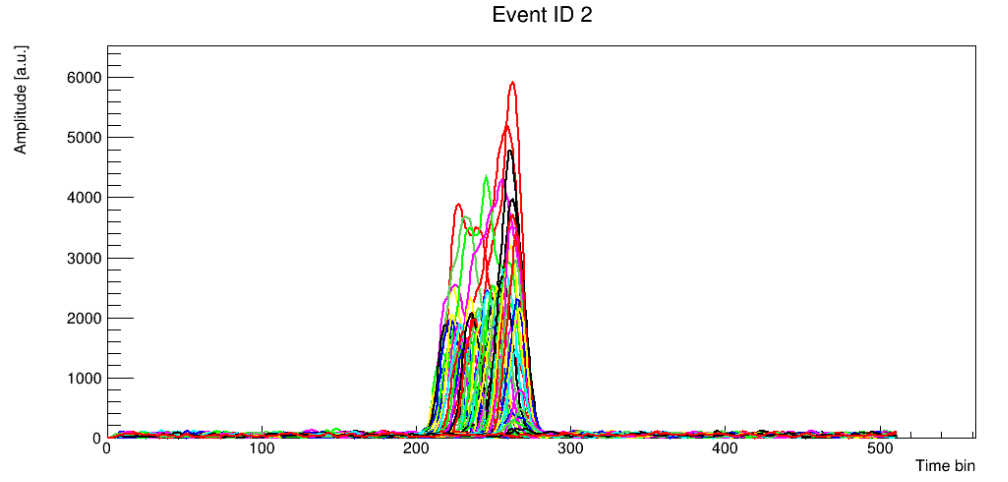

Raw event signals produced with DrawEvent method

Warning: ⚠ REST is under continous development. This documentation is offered to you by the REST community. Your HELP is needed to keep this code up to date. Your feedback will be worth to support this software, please report any problems/suggestions you may find while using it at The REST Framework forum. You are welcome to contribute fixing typos, updating information or adding/proposing new contributions. See also our Contribution Guide.

RESTsoft - Software for Rare Event Searches with TPCs

History of developments:

2017-Feb: First concept (inspired by TRestDetectorSignalEvent) Javier Galan

Author: Javier Galan

Definition at line 40 of file TRestRawSignalEvent.h.

#include <TRestRawSignalEvent.h>

Inheritance diagram for TRestRawSignalEvent:

Public Member Functions
void	AddChargeToSignal (Int_t sgnlID, Int_t bin, Short_t value)

void	AddSignal (TRestRawSignal &s)

TPad *	DrawEvent (const TString &option="")
	This method draws current raw signal event in a TPad. More...

TPad *	DrawSignal (Int_t signalID, const TString &option="")
	This method draws selected signalID by ID, with baseline range and points over threshold highlighted. More...

void	DrawSignals (TPad *pad, const std::vector< Int_t > &signals)
	This method draws selected signal IDs, given by the vector passed as reference. More...

Double_t	GetAverageWidth (Double_t minPeakAmplitude=0)

Double_t	GetBaseLineAverage ()

Double_t	GetBaseLineSigmaAverage ()

Double_t	GetIntegral ()

Double_t	GetLowAverageWidth (Int_t nSignals=5, Double_t minPeakAmplitude=0)

Int_t	GetLowestWidth (Double_t minPeakAmplitude=0)

TRestRawSignal *	GetMaxSignal ()

Double_t	GetMaxTime ()

Double_t	GetMaxValue ()

Double_t	GetMinTime ()

Double_t	GetMinValue ()

Int_t	GetNumberOfSignals () const

TRestRawReadoutMetadata *	GetReadoutMetadata () const

Double_t	GetRiseSlope ()

Double_t	GetRiseTime ()

TRestRawSignal *	GetSignal (Int_t n)

TRestRawSignal *	GetSignalById (Int_t sid)

TRestRawSignalEvent	GetSignalEventForType (const std::string &type) const

TRestRawSignalEvent	GetSignalEventForTypes (const std::set< std::string > &types, const TRestRawReadoutMetadata *readoutMetadata=nullptr) const

std::vector< int >	GetSignalIds ()

Int_t	GetSignalIndex (Int_t signalID)

std::vector< TRestRawSignal >	GetSignals () const

Double_t	GetSlopeIntegral ()

Double_t	GetThresholdIntegral ()

Double_t	GetTripleMaxIntegral ()

void	Initialize ()

Bool_t	isBaseLineInitialized ()

void	PrintEvent ()

void	PrintSignalIds ()

void	RemoveSignalWithId (Int_t sId)

void	SetBaseLineRange (Int_t from, Int_t to, std::string option="")

void	SetBaseLineRange (TVector2 blRange, std::string option="")

void	SetRange (Int_t from, Int_t to)

void	SetRange (TVector2 range)

void	SetTailPoints (Int_t p)

Bool_t	signalIDExists (Int_t sID)

Public Member Functions inherited from TRestEvent
virtual void	CloneTo (TRestEvent *target)
	Clone the content of this TRestEvent object to another. More...

virtual TPad *	DrawEvent (const TString &option="")
	Draw the event. More...

Int_t	GetID () const

Int_t	GetRunOrigin () const

TString	GetSubEventTag () const

Int_t	GetSubID () const

Int_t	GetSubRunOrigin () const

Double_t	GetTime () const

TTimeStamp	GetTimeStamp () const

virtual void	Initialize ()=0

virtual void	InitializeReferences (TRestRun *run)
	Initialize dynamical references when loading the event from a root file. More...

virtual void	InitializeWithMetadata (TRestRun *run)

Bool_t	isOk () const

virtual void	PrintEvent () const

void	SetEventInfo (TRestEvent *eve)

void	SetID (Int_t id)

void	SetOK (Bool_t state)

void	SetRunOrigin (Int_t run_origin)

void	SetState (Bool_t state)

void	SetSubEventTag (const TString &tag)

void	SetSubID (Int_t id)

void	SetSubRunOrigin (Int_t sub_run_origin)

void	SetTime (Double_t seconds, Double_t nanoseconds)

void	SetTime (Double_t time)

void	SetTimeStamp (const TTimeStamp &time)

	TRestEvent ()

virtual	~TRestEvent ()

Protected Attributes
TVector2	fBaseLineRange = TVector2(-1, -1)

Double_t	fMaxTime

Double_t	fMaxValue

Double_t	fMinTime

Double_t	fMinValue

TVector2	fRange = TVector2(-1, -1)

std::vector< TRestRawSignal >	fSignal

TGraph *	gr

Protected Attributes inherited from TRestEvent
Int_t	fEventID
	Event identification number. More...

TTimeStamp	fEventTime
	Absolute event time. More...

Bool_t	fOk
	Flag to be used by processes to define an event status. fOk=true is the default. More...

TPad *	fPad

TRestRun *	fRun = nullptr

Int_t	fRunOrigin
	Run ID number of the event. More...

Int_t	fSubEventID
	Sub-Event identification number. More...

TString	fSubEventTag
	A short length label to identify the sub-Event. More...

Int_t	fSubRunOrigin
	Sub-run ID number of the event. More...

Private Member Functions
void	SetMaxAndMin ()

Additional Inherited Members
Protected Member Functions inherited from TRestEvent
void	RestartPad (Int_t nElements)

Constructor & Destructor Documentation

◆ TRestRawSignalEvent()

TRestRawSignalEvent::TRestRawSignalEvent ( )

Definition at line 74 of file TRestRawSignalEvent.cxx.

◆ ~TRestRawSignalEvent()

TRestRawSignalEvent::~TRestRawSignalEvent ( )

virtual

Definition at line 79 of file TRestRawSignalEvent.cxx.

Member Function Documentation

◆ AddChargeToSignal()

void TRestRawSignalEvent::AddChargeToSignal	(	Int_t	signalID,
		Int_t	bin,
		Short_t	value
	)

Perhaps we should not subtract baselines on a TRestRawSignal. Just consider it in the observables calculation if a baseline range is provided in the argument (as it is done in InitializeThresholdIntegral). This method should be probably removed.

Definition at line 289 of file TRestRawSignalEvent.cxx.

◆ AddSignal()

void TRestRawSignalEvent::AddSignal ( TRestRawSignal & s )

Definition at line 95 of file TRestRawSignalEvent.cxx.

◆ DrawEvent()

TPad * TRestRawSignalEvent::DrawEvent ( const TString & option = "" )

virtual

This method draws current raw signal event in a TPad.

This method receives an optional argument as string that allows to control which signals will be plotted. Different options can be passed to the string by separated the options using colons, as "option1:option2:option3".

The following options are allowed:

from-to: It imposes that only the signal entries on the specified range will be plotted.
ids[startId,endId] or signalRangeID[startId,endId]: It imposes that the signal ids drawn are inside the given range. Giving the range using - symbol (as in previous option) is also allowed. I.e. ids[10-20].

onlyGoodSignals[pointTh,signalTh,nOver]: It imposes that only signals where points were identified over the threshold will be plotted. The parameters provided are the parameters given to the method TRestRawSignal::InitializePointsOverThreshold.
Warning
When using this option baseLineRange option must also be defined.
baseLineRange[start,end]: It defines the bin range (start,end) where the baseline will be calculated.
printIDs: Prints by screen the ID of plotted signals.

If no option is given, all signals will be plotted.

Example 1:

DrawEvent("0-10:onlyGoodSignals[3.5,1.5,7]:baseLineRange[20,150]:printIDs");

TRestRawSignalEvent::DrawEvent

TPad * DrawEvent(const TString &option="")

This method draws current raw signal event in a TPad.

Definition: TRestRawSignalEvent.cxx:408

Example 2:

DrawEvent("signalRangeID[800,900]:onlyGoodSignals[3.5,1.5,7]:baseLineRange[20,150]");

Example 3:

DrawEvent("ids[800,900]:printIDs");

Reimplemented from TRestEvent.

Definition at line 408 of file TRestRawSignalEvent.cxx.

◆ DrawSignal()

TPad * TRestRawSignalEvent::DrawSignal	(	Int_t	signalID,
		const TString &	option = `""`
	)

This method draws selected signalID by ID, with baseline range and points over threshold highlighted.

In order to compute points over threshold the following parameters should be provided:

goodSignals[pointTh,signalTh,nOver]: These parameters are the ones needed to call the method TRestRawSignal::InitializePointsOverThreshold.

Warning: When using this option baseLineRange option must also be defined.

baseLineRange[start,end]: It defines the bin range (start,end) where the baseline will be calculated.

Example 1:

DrawEvent(100,"goodSignals[3.5,1.5,7]:baseLineRange[20,150]");

Definition at line 687 of file TRestRawSignalEvent.cxx.

◆ DrawSignals()

void TRestRawSignalEvent::DrawSignals	(	TPad *	pad,
		const std::vector< Int_t > &	signals
	)

This method draws selected signal IDs, given by the vector passed as reference.

Definition at line 615 of file TRestRawSignalEvent.cxx.

◆ GetAverageWidth()

Double_t TRestRawSignalEvent::GetAverageWidth ( Double_t minPeakAmplitude = 0 )

Definition at line 232 of file TRestRawSignalEvent.cxx.

◆ GetBaseLineAverage()

Double_t TRestRawSignalEvent::GetBaseLineAverage ( )

Definition at line 208 of file TRestRawSignalEvent.cxx.

◆ GetBaseLineSigmaAverage()

Double_t TRestRawSignalEvent::GetBaseLineSigmaAverage ( )

Definition at line 268 of file TRestRawSignalEvent.cxx.

◆ GetIntegral()

Double_t TRestRawSignalEvent::GetIntegral ( )

Definition at line 126 of file TRestRawSignalEvent.cxx.

◆ GetLowAverageWidth()

Double_t TRestRawSignalEvent::GetLowAverageWidth	(	Int_t	nSignals = `5`,
		Double_t	minPeakAmplitude = `0`
	)

Definition at line 248 of file TRestRawSignalEvent.cxx.

◆ GetLowestWidth()

Int_t TRestRawSignalEvent::GetLowestWidth ( Double_t minPeakAmplitude = 0 )

Definition at line 219 of file TRestRawSignalEvent.cxx.

◆ GetMaxSignal()

TRestRawSignal * TRestRawSignalEvent::GetMaxSignal ( )

Definition at line 142 of file TRestRawSignalEvent.cxx.

◆ GetMaxTime()

Double_t TRestRawSignalEvent::GetMaxTime ( )

Definition at line 349 of file TRestRawSignalEvent.cxx.

◆ GetMaxValue()

Double_t TRestRawSignalEvent::GetMaxValue ( )

Definition at line 337 of file TRestRawSignalEvent.cxx.

◆ GetMinTime()

Double_t TRestRawSignalEvent::GetMinTime ( )

Definition at line 347 of file TRestRawSignalEvent.cxx.

◆ GetMinValue()

Double_t TRestRawSignalEvent::GetMinValue ( )

Definition at line 342 of file TRestRawSignalEvent.cxx.

◆ GetNumberOfSignals()

Int_t TRestRawSignalEvent::GetNumberOfSignals ( ) const

inline

Definition at line 96 of file TRestRawSignalEvent.h.

◆ GetReadoutMetadata()

TRestRawReadoutMetadata * TRestRawSignalEvent::GetReadoutMetadata ( ) const

Definition at line 800 of file TRestRawSignalEvent.cxx.

◆ GetRiseSlope()

Double_t TRestRawSignalEvent::GetRiseSlope ( )

Definition at line 167 of file TRestRawSignalEvent.cxx.

◆ GetRiseTime()

Double_t TRestRawSignalEvent::GetRiseTime ( )

Definition at line 183 of file TRestRawSignalEvent.cxx.

◆ GetSignal()

TRestRawSignal * TRestRawSignalEvent::GetSignal ( Int_t n )

inline

Definition at line 97 of file TRestRawSignalEvent.h.

◆ GetSignalById()

TRestRawSignal * TRestRawSignalEvent::GetSignalById ( Int_t sid )

inline

Definition at line 120 of file TRestRawSignalEvent.h.

◆ GetSignalEventForType()

TRestRawSignalEvent TRestRawSignalEvent::GetSignalEventForType ( const std::string & type ) const

Definition at line 808 of file TRestRawSignalEvent.cxx.

◆ GetSignalEventForTypes()

TRestRawSignalEvent TRestRawSignalEvent::GetSignalEventForTypes	(	const std::set< std::string > &	types,
		const TRestRawReadoutMetadata *	readoutMetadata = `nullptr`
	)		const

Definition at line 812 of file TRestRawSignalEvent.cxx.

◆ GetSignalIds()

std::vector< int > TRestRawSignalEvent::GetSignalIds ( )

inline

Definition at line 107 of file TRestRawSignalEvent.h.

◆ GetSignalIndex()

Int_t TRestRawSignalEvent::GetSignalIndex ( Int_t signalID )

Definition at line 120 of file TRestRawSignalEvent.cxx.

◆ GetSignals()

std::vector< TRestRawSignal > TRestRawSignalEvent::GetSignals ( ) const

inline

Definition at line 62 of file TRestRawSignalEvent.h.

◆ GetSlopeIntegral()

Double_t TRestRawSignalEvent::GetSlopeIntegral ( )

Definition at line 159 of file TRestRawSignalEvent.cxx.

◆ GetThresholdIntegral()

Double_t TRestRawSignalEvent::GetThresholdIntegral ( )

The result if this method depends on InitializePointsOverThreshold. Arguments are given there.

Definition at line 136 of file TRestRawSignalEvent.cxx.

◆ GetTripleMaxIntegral()

Double_t TRestRawSignalEvent::GetTripleMaxIntegral ( )

Definition at line 199 of file TRestRawSignalEvent.cxx.

◆ Initialize()

void TRestRawSignalEvent::Initialize ( )

virtual

Run to initialize event data. To be re-implemented in derived class, you may want to call the base class at the end of the re-implemented, by calling TRestEvent::Initialize();

Implements TRestEvent.

Definition at line 83 of file TRestRawSignalEvent.cxx.

◆ isBaseLineInitialized()

Bool_t TRestRawSignalEvent::isBaseLineInitialized ( )

inline

Definition at line 113 of file TRestRawSignalEvent.h.

◆ PrintEvent()

void TRestRawSignalEvent::PrintEvent ( )

Definition at line 302 of file TRestRawSignalEvent.cxx.

◆ PrintSignalIds()

void TRestRawSignalEvent::PrintSignalIds ( )

inline

Definition at line 99 of file TRestRawSignalEvent.h.

◆ RemoveSignalWithId()

void TRestRawSignalEvent::RemoveSignalWithId ( Int_t sId )

Definition at line 108 of file TRestRawSignalEvent.cxx.

◆ SetBaseLineRange() [1/2]

void TRestRawSignalEvent::SetBaseLineRange	(	Int_t	from,
		Int_t	to,
		std::string	option = `""`
	)

inline

It sets the range to be used for the baseline calculation and calls TRestRawSignal::CalculateBaseLine()

Definition at line 83 of file TRestRawSignalEvent.h.

◆ SetBaseLineRange() [2/2]

void TRestRawSignalEvent::SetBaseLineRange	(	TVector2	blRange,
		std::string	option = `""`
	)

inline

It sets the range to be used for the baseline calculation and calls TRestRawSignal::CalculateBaseLine()

Definition at line 77 of file TRestRawSignalEvent.h.

◆ SetMaxAndMin()

void TRestRawSignalEvent::SetMaxAndMin ( )

private

Definition at line 317 of file TRestRawSignalEvent.cxx.

◆ SetRange() [1/2]

void TRestRawSignalEvent::SetRange	(	Int_t	from,
		Int_t	to
	)

inline

Definition at line 90 of file TRestRawSignalEvent.h.

◆ SetRange() [2/2]

void TRestRawSignalEvent::SetRange ( TVector2 range )

inline

Definition at line 88 of file TRestRawSignalEvent.h.

◆ SetTailPoints()

void TRestRawSignalEvent::SetTailPoints ( Int_t p )

inline

Definition at line 71 of file TRestRawSignalEvent.h.

◆ signalIDExists()

Bool_t TRestRawSignalEvent::signalIDExists ( Int_t sID )

inline

Definition at line 57 of file TRestRawSignalEvent.h.

Field Documentation

◆ fBaseLineRange

TVector2 TRestRawSignalEvent::fBaseLineRange = TVector2(-1, -1)

protected

Definition at line 48 of file TRestRawSignalEvent.h.

◆ fMaxTime

Double_t TRestRawSignalEvent::fMaxTime

protected

Definition at line 44 of file TRestRawSignalEvent.h.

◆ fMaxValue

Double_t TRestRawSignalEvent::fMaxValue

protected

Definition at line 46 of file TRestRawSignalEvent.h.

◆ fMinTime

Double_t TRestRawSignalEvent::fMinTime

protected

Definition at line 43 of file TRestRawSignalEvent.h.

◆ fMinValue

Double_t TRestRawSignalEvent::fMinValue

protected

Definition at line 45 of file TRestRawSignalEvent.h.

◆ fRange

TVector2 TRestRawSignalEvent::fRange = TVector2(-1, -1)

protected

Definition at line 49 of file TRestRawSignalEvent.h.

◆ fSignal

std::vector<TRestRawSignal> TRestRawSignalEvent::fSignal

protected

Definition at line 51 of file TRestRawSignalEvent.h.

◆ gr

TGraph* TRestRawSignalEvent::gr

protected

Definition at line 42 of file TRestRawSignalEvent.h.

The documentation for this class was generated from the following files:

Detailed Description

Public Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ TRestRawSignalEvent()

◆ ~TRestRawSignalEvent()

Member Function Documentation

◆ AddChargeToSignal()

◆ AddSignal()

◆ DrawEvent()

◆ DrawSignal()

◆ DrawSignals()

◆ GetAverageWidth()

◆ GetBaseLineAverage()

◆ GetBaseLineSigmaAverage()

◆ GetIntegral()

◆ GetLowAverageWidth()

◆ GetLowestWidth()

◆ GetMaxSignal()

◆ GetMaxTime()

◆ GetMaxValue()

◆ GetMinTime()

◆ GetMinValue()

◆ GetNumberOfSignals()

◆ GetReadoutMetadata()

◆ GetRiseSlope()

◆ GetRiseTime()

◆ GetSignal()

◆ GetSignalById()

◆ GetSignalEventForType()

◆ GetSignalEventForTypes()

◆ GetSignalIds()

◆ GetSignalIndex()

◆ GetSignals()

◆ GetSlopeIntegral()

◆ GetThresholdIntegral()

◆ GetTripleMaxIntegral()

◆ Initialize()

◆ isBaseLineInitialized()

◆ PrintEvent()

◆ PrintSignalIds()

◆ RemoveSignalWithId()

◆ SetBaseLineRange() [1/2]

◆ SetBaseLineRange() [2/2]

◆ SetMaxAndMin()

◆ SetRange() [1/2]

◆ SetRange() [2/2]

◆ SetTailPoints()

◆ signalIDExists()

Field Documentation

◆ fBaseLineRange

◆ fMaxTime

◆ fMaxValue

◆ fMinTime

◆ fMinValue

◆ fRange

◆ fSignal

◆ gr
