Detailed Description

Metadata class to calculate,store and apply the gain corrected calibration of a group of detectors.

TRestDataSetGainMap calculates and stores the calibration parameters for a given detector with multiple (or just one) modules. The modules are defined using the Module class (defined internally). It performs a gain correction based on a spatial segmentation of the detector module. This is useful forbig modules such as the ones used in TREX-DM experiment. The input data files for this methods are TRestDataSet for both calculating the calibration parameters and performing the calibration of the desired events.

To correct the gain inhomogeneities, the module is divided in fNumberOfSegmentsX*fNumberOfSegmentsY segments. The energy peaks provided are fitted in each segment. The events are associated to each segment based on the observables fSpatialObservableX and fSpatialObservablesY. This results in the following plot that can be obtain with the function TRestDataSetGainMap::Module::DrawSpectrum()

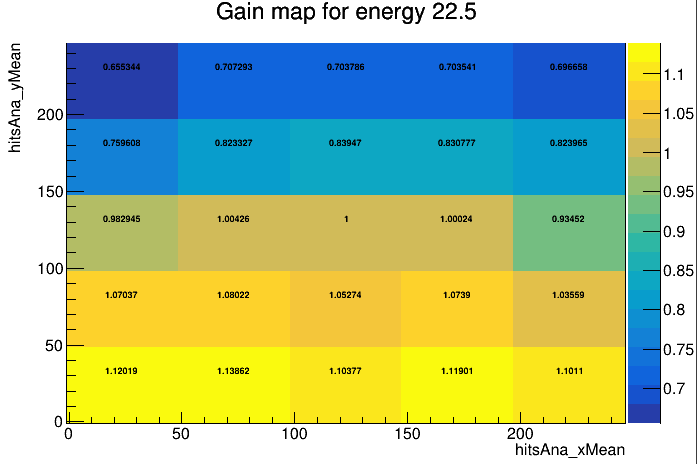

TRestDataSetGainMap::Module::DrawSpectrum()" TRestDataSetGainMap::Module::DrawSpectrum()" TRestDataSetGainMap::Module::DrawSpectrum()" TRestDataSetGainMap::Module::DrawSpectrum()" TRestDataSetGainMap::Module::DrawSpectrum()" Also, the peak position provides a gain map that can be plotted with the function TRestDataSetGainMap::Module::DrawGainMap(peakNumber) @htmlonly <style>div.image img[src="drawGainMap.png"]{width:200px;}</style> \endhtmlonly @image{inline} html drawGainMap.png "Gain map. Plot obtain with TRestDataSetGainMap::Module::DrawGainMap()"

The result is a better energy resolution with the gain corrected calibration (red) than the plain calibration (blue).

Parameters

calibFileName: name of the file to use for the calibration. It should be a TRestDataSet
outputFileName: name of the file to save this calibration metadata
observable: name of the observable to be calibrated. It must be a branch of the calibration TRestDataSet
spatialObservableX: name of the observable to be used for the spatial segmentation along the X axis. It must be a column (branch) of the calibration TRestDataSet
spatialObservableY: name of the observable to be used for the spatial segmentation along the Y axis. It must be a column (branch) of the calibration TRestDataSet
modulesCal: vector of Module objects

Examples

A example of RML definition of this class can be found inside the file REST_PATH/examples/calibrationCorrection.rml. This have the following structure:

  <TRestDataSetGainMap name="calib">
          ...
          <module>
              ...
          </module>
          <module>
              ...
          </module>
</TRestDataSetGainMap>

Example to calculate the calibration parameters over a calibration dataSet using restRoot:

TRestDataSetGainMap gm ("calibrationCorrection.rml");
gm.SetCalibrationFileName("myDataSet.root"); //if not already defined in rml file
gm.SetOutputFileName("myCalibration.root"); //if not already defined in rml file
gm.GenerateGainMap();
gm.Export(); // gm.Export("anyOtherFileName.root")

Example to calibrate a dataSet with the previously calculated calibration parameters and draw the result (using restRoot):

TRestDataSetGainMap gm;
gm.Import("myCalibration.root");
gm.CalibrateDataSet("dataSetToCalibrate.root", "calibratedDataSet.root");
TRestDataSet ds;
ds.Import("calibratedDataSet.root");
auto h = ds.GetDataFrame().Histo1D({"hname", "",100,-1,40.}, "calib_ThresholdIntegral");
h->Draw();

Example to refit manually the peaks of the gain map if any of them is not well fitted (using restRoot):

TRestDataSetGainMap gm;
gm.Import("myCalibration.root");
// Draw all segmented spectra and check if any need a refit
for (auto pID : gm.GetPlaneIDs())
    for (auto mID : gm.GetModuleIDs(pID))
        gm.GetModule(pID,mID)->DrawSpectrum();
// Draw only the desired spectrum (segment 0,0 in this case)
gm.GetModule(0,0)->DrawSpectrum(0, 0);
// Refit the desired peak (peak with energy 22.5 in this case) with a new range
TVector2 range(100000, 200000); // Define here the new range for the fit as you wish
gm.GetModule(0,0)->Refit(TVector2(0,0), 22.5, range);
// Check the result
gm.GetModule(0,0)->DrawSpectrum(TVector2(0.0,0.0)); // using x,y physical coord is possible
// Export the new calibration
gm.Export(); // gm.Export("anyOtherFileName.root")

REST-for-Physics - Software for Rare Event Searches Toolkit

History of developments:

2023-September: First implementation of TRestDataSetGainMap Álvaro Ezquerro

Author: : Álvaro Ezquerro aezqu.nosp@m.erro.nosp@m.@uniz.nosp@m.ar.e.nosp@m.s

Definition at line 41 of file TRestDataSetGainMap.h.

#include <TRestDataSetGainMap.h>

Inheritance diagram for TRestDataSetGainMap:

Data Structures
class	Module

Public Member Functions
void	CalibrateDataSet (const std::string &dataSetFileName, std::string outputFileName="", std::vector< std::string > excludeColumns={})
	Function to calibrate a dataset with this gain map. More...

	ClassDefOverride (TRestDataSetGainMap, 2)

void	Export (const std::string &fileName="")
	Function to export the calibration to the file fileName. More...

void	GenerateGainMap ()
	Function to calculate the calibration parameters of all modules. More...

std::string	GetCalibrationFileName () const

TRestCut *	GetCut () const

double	GetInterceptParameter (const int planeID, const int moduleID, const double x, const double y)
	Function to get the intercept parameter of the module with planeID and moduleID at physical position (x,y) More...

double	GetInterceptParameterFullSpc (const int planeID, const int moduleID)
	Function to get the intercept parameter of the whole module with planeID and moduleID. More...

Module *	GetModule (const int planeID, const int moduleID)
	Function to retrieve the module calibration with planeID and moduleID. More...

Module *	GetModule (const size_t index=0)
	Function to retrieve the module calibration by index. Default is 0. More...

std::map< int, std::set< int > >	GetModuleIDs () const
	Function to get the map of the module IDs for each plane ID. More...

std::set< int >	GetModuleIDs (const int planeId) const
	Function to get a list (set) of the module IDs of the plane with planeID. More...

Int_t	GetNumberOfModules () const

Int_t	GetNumberOfPlanes () const

std::string	GetObservable () const

std::string	GetOutputFileName () const

std::set< int >	GetPlaneIDs () const
	Function to get a list (set) of the plane IDs. More...

double	GetSlopeParameter (const int planeID, const int moduleID, const double x, const double y)
	Function to get the slope parameter of the module with planeID and moduleID at physical position (x,y) More...

double	GetSlopeParameterFullSpc (const int planeID, const int moduleID)
	Function to get the slope parameter of the whole module with planeID and moduleID. More...

std::string	GetSpatialObservableX () const

std::string	GetSpatialObservableY () const

void	Import (const std::string &fileName)
	Function to import the calibration parameters from the root file fileName. More...

TRestDataSetGainMap &	operator= (TRestDataSetGainMap &src)

void	PrintMetadata () override
	Prints on screen the information about the metadata members. More...

void	SetCalibrationFileName (const std::string &fileName)

void	SetCut (TRestCut *cut)

void	SetModule (const Module &moduleCal)
	Function to set a module calibration. If the module calibration already exists (same planeId and moduleId), it will be replaced. More...

void	SetObservable (const std::string &observable)

void	SetOutputFileName (const std::string &fileName)

void	SetSpatialObservableX (const std::string &spatialObservableX)

void	SetSpatialObservableY (const std::string &spatialObservableY)

	TRestDataSetGainMap ()
	Default constructor. More...

	TRestDataSetGainMap (const char *configFilename, std::string name="")
	Constructor loading data from a config file. More...

	~TRestDataSetGainMap ()
	Default destructor. More...

Public Member Functions inherited from TRestMetadata
void	AddLog (std::string log="", bool print=true)
	Add logs to messageBuffer. More...

void	DoNotStore ()
	If this method is called the metadata information will not be stored in disk. More...

TVector2	Get2DVectorParameterWithUnits (std::string parName, TVector2 defaultValue=TVector2(-1, -1))

TVector3	Get3DVectorParameterWithUnits (std::string parName, TVector3 defaultValue=TVector3(-1, -1, -1))

TString	GetCommit ()
	Returns the REST commit value stored in fCommit. More...

std::string	GetConfigBuffer ()
	Returns the config section of this class. More...

std::string	GetDataMemberValue (std::string memberName)
	Get the value of data member as string. More...

std::vector< std::string >	GetDataMemberValues (std::string memberName, Int_t precision=0)
	Get the value of datamember as a vector of strings. More...

TString	GetDataPath ()
	Returns a std::string with the path used for data storage. More...

Double_t	GetDblParameterWithUnits (std::string parName, Double_t defaultValue=PARAMETER_NOT_FOUND_DBL)
	Gets the value of the parameter name parName, after applying unit conversion. More...

Bool_t	GetError () const
	It returns true if an error was identified by a derived metadata class. More...

TString	GetErrorMessage ()
	Returns a std::string containing the error message. More...

TString	GetLibraryVersion ()
	Returns the REST libraty version stored in fLibraryVersion. More...

TString	GetMainDataPath ()
	Gets a std::string with the path used for data storage. More...

Int_t	GetNumberOfErrors () const

Int_t	GetNumberOfWarnings () const

std::string	GetParameter (std::string parName, TString defaultValue=PARAMETER_NOT_FOUND_STR)
	Returns corresponding REST Metadata parameter from multiple sources. More...

std::string	GetSectionName ()
	Returns the section name of this class, defined at the beginning of fSectionName. More...

TRestStringOutput::REST_Verbose_Level	GetVerboseLevel ()
	returns the verboselevel in type of REST_Verbose_Level enumerator More...

TString	GetVerboseLevelString ()
	returns the verbose level in type of TString More...

TString	GetVersion ()
	Returns the REST version stored in fVersion. More...

Int_t	GetVersionCode ()

UInt_t	GetVersionMajor () const

UInt_t	GetVersionMinor () const

UInt_t	GetVersionPatch () const

Bool_t	GetWarning () const
	It returns true if an error was identified by a derived metadata class. More...

TString	GetWarningMessage ()
	Returns a std::string containing the warning message. More...

virtual void	Initialize ()
	Making default settings. More...

TRestMetadata *	InstantiateChildMetadata (int index, std::string pattern="")
	This method will retrieve a new TRestMetadata instance of a child element of the present TRestMetadata instance based on the `index` given by argument, which defines the element order to be retrieved, 0 for first element found, 1 for the second element found, etc. More...

TRestMetadata *	InstantiateChildMetadata (std::string pattern="", std::string name="")
	This method will retrieve a new TRestMetadata instance of a child element of the present TRestMetadata instance based on the `name` given by argument. More...

Bool_t	isCleanState () const

Bool_t	isOfficialRelease () const

Int_t	LoadConfigFromBuffer ()
	Initialize data from a string element buffer. More...

Int_t	LoadConfigFromElement (TiXmlElement eSectional, TiXmlElement eGlobal, std::map< std::string, std::string > envs={})
	Main starter method. More...

Int_t	LoadConfigFromFile (const std::string &configFilename, const std::string &sectionName="")
	Give the file name, find out the corresponding section. Then call the main starter. More...

virtual void	Merge (const TRestMetadata &)

TRestMetadata &	operator= (const TRestMetadata &)

void	Print ()
	Implementing TObject::Print() method. More...

void	PrintConfigBuffer ()
	Print the config xml section stored in the class. More...

void	PrintMessageBuffer ()
	Print the buffered message. More...

virtual void	PrintMetadata ()
	Implemented it in the derived metadata class to print out specific metadata information. More...

void	PrintTimeStamp (Double_t timeStamp)
	Print the current time on local machine. More...

void	SetConfigFile (std::string configFilename)
	set config file path from external More...

void	SetError (std::string message="", bool print=true, int maxPrint=5)
	A metadata class may use this method to signal that something went wrong. More...

void	SetHostmgr (TRestManager *m)
	Set the host manager for this class. More...

void	SetSectionName (std::string sName)
	set the section name, clear the section content More...

void	SetVerboseLevel (TRestStringOutput::REST_Verbose_Level v)
	sets the verbose level More...

void	SetWarning (std::string message="", bool print=true, int maxPrint=5)
	A metadata class may use this method to signal that something went wrong. More...

void	Store ()
	If this method is called the metadata information will be stored in disk. More...

	TRestMetadata (const TRestMetadata &)

virtual void	UpdateMetadataMembers ()
	Method to allow implementation of specific metadata members updates at inherited classes. More...

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	overwriting the write() method with fStore considered More...

void	WriteConfigBuffer (std::string fName)
	Writes the config buffer to a file in append mode. More...

	~TRestMetadata ()
	TRestMetadata default destructor. More...

Private Member Functions
void	InitFromConfigFile () override
	Initialization of TRestDataSetGainMap members through a RML file. More...

void	Initialize () override
	Making default settings. More...

Private Attributes
std::string	fCalibFileName = ""
	Name of the file that contains the calibration data. More...

TRestCut *	fCut = nullptr
	Cut to be applied to the calibration data. More...

std::vector< Module >	fModulesCal = {}
	List of modules. More...

std::string	fObservable = ""
	Observable that will be used to calculate the gain map. More...

std::string	fOutputFileName = ""
	Name of the file where the gain map was (or will be) exported. More...

std::string	fSpatialObservableX = ""
	Observable that will be used to segmentize the gain map in the x direction. More...

std::string	fSpatialObservableY = ""
	Observable that will be used to segmentize the gain map in the y direction. More...

Additional Inherited Members
Protected Member Functions inherited from TRestMetadata
std::string	ElementToString (TiXmlElement *ele)
	Convert an TiXmlElement object to string. More...

TVector2	Get2DVectorParameterWithUnits (std::string parName, TiXmlElement *e, TVector2 defaultValue=TVector2(-1, -1))

TVector3	Get3DVectorParameterWithUnits (std::string parName, TiXmlElement *e, TVector3 defaultValue=TVector3(-1, -1, -1))

Double_t	GetDblParameterWithUnits (std::string parName, TiXmlElement *e, Double_t defaultVal=PARAMETER_NOT_FOUND_DBL)

TiXmlElement *	GetElement (std::string eleDeclare, TiXmlElement *e=nullptr)
	Get an xml element from a given parent element, according to its declaration. More...

TiXmlElement *	GetElementFromFile (std::string configFilename, std::string NameOrDecalre="")
	Open an xml encoded file and find its element. More...

TiXmlElement *	GetElementWithName (std::string eleDeclare, std::string eleName)
	Get an xml element from the default location, according to its declaration and its field "name". More...

TiXmlElement *	GetElementWithName (std::string eleDeclare, std::string eleName, TiXmlElement *e)
	Get an xml element from a given parent element, according to its declaration and its field "name". More...

std::string	GetFieldValue (std::string fieldName, std::string definition, size_t fromPosition=0)
	Gets field value in an xml element string by parsing it as TiXmlElement. More...

std::string	GetFieldValue (std::string parName, TiXmlElement *e)
	Returns the field value of an xml element which has the specified name. More...

std::string	GetKEYDefinition (std::string keyName)
	Gets the first key definition for keyName found inside buffer starting at fromPosition. More...

std::string	GetKEYDefinition (std::string keyName, size_t &Position)

std::string	GetKEYDefinition (std::string keyName, size_t &Position, std::string buffer)

std::string	GetKEYDefinition (std::string keyName, std::string buffer)

std::string	GetKEYStructure (std::string keyName)
	Gets the first key structure for keyName found inside buffer after fromPosition. More...

std::string	GetKEYStructure (std::string keyName, size_t &Position)

std::string	GetKEYStructure (std::string keyName, size_t &Position, std::string buffer)

std::string	GetKEYStructure (std::string keyName, size_t &Position, TiXmlElement *ele)

std::string	GetKEYStructure (std::string keyName, std::string buffer)

TiXmlElement *	GetNextElement (TiXmlElement *e)
	Get the next sibling xml element of this element, with same eleDeclare. More...

std::string	GetParameter (std::string parName, size_t &pos, std::string inputString)
	Returns the value for the parameter name parName found in inputString. More...

std::string	GetParameter (std::string parName, TiXmlElement *e, TString defaultValue=PARAMETER_NOT_FOUND_STR)
	Returns the value for the parameter named parName in the given section. More...

std::pair< std::string, std::string >	GetParameterAndUnits (std::string parname, TiXmlElement *e=nullptr)
	Returns the unit string of the given parameter of the given xml section. More...

std::map< std::string, std::string >	GetParametersList ()
	It retrieves a map of all parameter:value found in the metadata class. More...

TString	GetSearchPath ()

virtual void	InitFromConfigFile ()
	To make settings from rml file. This method must be implemented in the derived class. More...

virtual void	InitFromRootFile ()
	Method called after the object is retrieved from root file. More...

virtual Int_t	LoadSectionMetadata ()
	This method does some preparation of xml section. More...

void	ReadAllParameters ()
	Reflection methods, Set value of a datamember in class according to TRestMetadata::fElement. More...

void	ReadParametersList (std::map< std::string, std::string > &list)
	It reads a parameter list and associates it to its corresponding metadata member. par0 --> fPar0. More...

std::string	ReplaceConstants (const std::string buffer)
	Identifies "constants" in the input buffer, and replace them with corresponding value. More...

std::string	ReplaceVariables (const std::string buffer)
	Identifies environmental variable replacing marks in the input buffer, and replace them with corresponding value. More...

void	ReSetVersion ()
	Resets the version of TRestRun to REST_RELEASE. Only TRestRun is allowed to update version. More...

std::string	SearchFile (std::string filename)
	Search files in current directory and directories specified in "searchPath" section. More...

void	SetLibraryVersion (TString version)
	Set the library version of this metadata class. More...

TiXmlElement *	StringToElement (std::string definition)
	Parsing a string into TiXmlElement object. More...

	TRestMetadata ()
	TRestMetadata default constructor. More...

	TRestMetadata (const char *configFilename)
	constructor More...

void	UnSetVersion ()
	Resets the version of TRestRun to -1, in case the file is old REST file. Only TRestRun is allowed to update version. More...

Protected Attributes inherited from TRestMetadata
std::string	configBuffer
	The buffer where the corresponding metadata section is stored. Filled only during Write() More...

std::string	fConfigFileName
	Full name of the rml file. More...

std::map< std::string, std::string >	fConstants
	Saving a list of rml constants. name-value std::pair. Constants are temporary for this class only. More...

TiXmlElement *	fElement
	Saving the sectional element together with global element. More...

TiXmlElement *	fElementGlobal
	Saving the global element, to be passed to the resident class, if necessary. More...

Bool_t	fError = false
	It can be used as a way to identify that something went wrong using SetError method. More...

TString	fErrorMessage = ""
	A std::string to store an optional error message through method SetError. More...

TRestManager *	fHostmgr
	All metadata classes can be initialized and managed by TRestManager. More...

Int_t	fNErrors = 0
	It counts the number of errors notified. More...

Int_t	fNWarnings = 0
	It counts the number of warnings notified. More...

std::string	fSectionName
	Section name given in the constructor of the derived metadata class. More...

Bool_t	fStore
	This variable is used to determine if the metadata structure should be stored in the ROOT file. More...

std::map< std::string, std::string >	fVariables
	Saving a list of rml variables. name-value std::pair. More...

TRestStringOutput::REST_Verbose_Level	fVerboseLevel
	Verbose level used to print debug info. More...

Bool_t	fWarning = false
	It can be used as a way to identify that something went wrong using SetWarning method. More...

TString	fWarningMessage = ""
	It can be used as a way to identify that something went wrong using SetWarning method. More...

std::string	messageBuffer
	The buffer to store the output message through TRestStringOutput in this class. More...

endl_t	RESTendl
	Termination flag object for TRestStringOutput. More...

Constructor & Destructor Documentation

◆ TRestDataSetGainMap() [1/2]

TRestDataSetGainMap::TRestDataSetGainMap ( )

Default constructor.

Definition at line 144 of file TRestDataSetGainMap.cxx.

◆ TRestDataSetGainMap() [2/2]

TRestDataSetGainMap::TRestDataSetGainMap	(	const char *	configFilename,
		std::string	name = `""`
	)

Constructor loading data from a config file.

If no configuration path is defined using TRestMetadata::SetConfigFilePath the path to the config file must be specified using full path, absolute or relative.

The default behaviour is that the config file must be specified with full path, absolute or relative.

Parameters

configFilename	A const char* that defines the RML filename.
name	The name of the metadata section. It will be used to find the corresponding TRestDataSetGainMap section inside the RML.

Definition at line 160 of file TRestDataSetGainMap.cxx.

◆ ~TRestDataSetGainMap()

TRestDataSetGainMap::~TRestDataSetGainMap ( )

Default destructor.

Definition at line 169 of file TRestDataSetGainMap.cxx.

Member Function Documentation

◆ CalibrateDataSet()

void TRestDataSetGainMap::CalibrateDataSet	(	const std::string &	dataSetFileName,
		std::string	outputFileName = `""`,
		std::vector< std::string >	excludeColumns = `{}`
	)

Function to calibrate a dataset with this gain map.

Parameters

dataSetFileName	the name of the root file where the TRestDataSet to be calibrated is stored.
outputFileName	the name of the output (root) file where the calibrated TRestDataSet will be exported. If empty, the output file will be named as the input file plus the name of the TRestDataSetGainMap. E.g. "data/myDataSet.root" -> "data/myDataSet_<gmName>.root".
excludeColumns	a vector of strings with the names of the columns to be excluded from the output file. If empty, all columns will be included. If "all" is in the list, all columns will be excluded except the calibrated observable, the calibrated observable with no segmentation and the plane-module identifier (pmID).

Definition at line 222 of file TRestDataSetGainMap.cxx.

◆ Export()

void TRestDataSetGainMap::Export ( const std::string & fileName = "" )

Function to export the calibration to the file fileName.

Parameters

fileName The name of the output file. If empty, the output file will be the fOutputFileName class member.

Definition at line 493 of file TRestDataSetGainMap.cxx.

◆ GenerateGainMap()

void TRestDataSetGainMap::GenerateGainMap ( )

Function to calculate the calibration parameters of all modules.

Definition at line 197 of file TRestDataSetGainMap.cxx.

◆ GetCalibrationFileName()

std::string TRestDataSetGainMap::GetCalibrationFileName ( ) const

inline

Definition at line 81 of file TRestDataSetGainMap.h.

◆ GetCut()

TRestCut * TRestDataSetGainMap::GetCut ( ) const

inline

Definition at line 86 of file TRestDataSetGainMap.h.

◆ GetInterceptParameter()

double TRestDataSetGainMap::GetInterceptParameter	(	const int	planeID,
		const int	moduleID,
		const double	x,
		const double	y
	)

Function to get the intercept parameter of the module with planeID and moduleID at physical position (x,y)

Definition at line 376 of file TRestDataSetGainMap.cxx.

◆ GetInterceptParameterFullSpc()

double TRestDataSetGainMap::GetInterceptParameterFullSpc	(	const int	planeID,
		const int	moduleID
	)

Function to get the intercept parameter of the whole module with planeID and moduleID.

Definition at line 387 of file TRestDataSetGainMap.cxx.

◆ GetModule() [1/2]

TRestDataSetGainMap::Module * TRestDataSetGainMap::GetModule	(	const int	planeID,
		const int	moduleID
	)

Function to retrieve the module calibration with planeID and moduleID.

Definition at line 341 of file TRestDataSetGainMap.cxx.

◆ GetModule() [2/2]

TRestDataSetGainMap::Module * TRestDataSetGainMap::GetModule ( const size_t index = 0 )

Function to retrieve the module calibration by index. Default is 0.

Definition at line 326 of file TRestDataSetGainMap.cxx.

◆ GetModuleIDs() [1/2]

std::map< int, std::set< int > > TRestDataSetGainMap::GetModuleIDs ( ) const

Function to get the map of the module IDs for each plane ID.

Definition at line 417 of file TRestDataSetGainMap.cxx.

◆ GetModuleIDs() [2/2]

std::set< int > TRestDataSetGainMap::GetModuleIDs ( const int planeId ) const

Function to get a list (set) of the module IDs of the plane with planeID.

Definition at line 407 of file TRestDataSetGainMap.cxx.

◆ GetNumberOfModules()

Int_t TRestDataSetGainMap::GetNumberOfModules ( ) const

inline

Definition at line 75 of file TRestDataSetGainMap.h.

◆ GetNumberOfPlanes()

Int_t TRestDataSetGainMap::GetNumberOfPlanes ( ) const

inline

Definition at line 74 of file TRestDataSetGainMap.h.

◆ GetObservable()

std::string TRestDataSetGainMap::GetObservable ( ) const

inline

Definition at line 83 of file TRestDataSetGainMap.h.

◆ GetOutputFileName()

std::string TRestDataSetGainMap::GetOutputFileName ( ) const

inline

Definition at line 82 of file TRestDataSetGainMap.h.

◆ GetPlaneIDs()

std::set< int > TRestDataSetGainMap::GetPlaneIDs ( ) const

Function to get a list (set) of the plane IDs.

Definition at line 397 of file TRestDataSetGainMap.cxx.

◆ GetSlopeParameter()

double TRestDataSetGainMap::GetSlopeParameter	(	const int	planeID,
		const int	moduleID,
		const double	x,
		const double	y
	)

Function to get the slope parameter of the module with planeID and moduleID at physical position (x,y)

Definition at line 354 of file TRestDataSetGainMap.cxx.

◆ GetSlopeParameterFullSpc()

double TRestDataSetGainMap::GetSlopeParameterFullSpc	(	const int	planeID,
		const int	moduleID
	)

Function to get the slope parameter of the whole module with planeID and moduleID.

Definition at line 365 of file TRestDataSetGainMap.cxx.

◆ GetSpatialObservableX()

std::string TRestDataSetGainMap::GetSpatialObservableX ( ) const

inline

Definition at line 84 of file TRestDataSetGainMap.h.

◆ GetSpatialObservableY()

std::string TRestDataSetGainMap::GetSpatialObservableY ( ) const

inline

Definition at line 85 of file TRestDataSetGainMap.h.

◆ Import()

void TRestDataSetGainMap::Import ( const std::string & fileName )

Function to import the calibration parameters from the root file fileName.

Definition at line 455 of file TRestDataSetGainMap.cxx.

◆ InitFromConfigFile()

void TRestDataSetGainMap::InitFromConfigFile ( )

overrideprivatevirtual

Initialization of TRestDataSetGainMap members through a RML file.

Reimplemented from TRestMetadata.

Definition at line 176 of file TRestDataSetGainMap.cxx.

◆ Initialize()

void TRestDataSetGainMap::Initialize ( )

overrideprivatevirtual

Making default settings.

Reimplemented from TRestMetadata.

Definition at line 171 of file TRestDataSetGainMap.cxx.

◆ operator=()

TRestDataSetGainMap & TRestDataSetGainMap::operator= ( TRestDataSetGainMap & src )

Definition at line 424 of file TRestDataSetGainMap.cxx.

◆ PrintMetadata()

void TRestDataSetGainMap::PrintMetadata ( )

overridevirtual

Prints on screen the information about the metadata members.

Reimplemented from TRestMetadata.

Definition at line 513 of file TRestDataSetGainMap.cxx.

◆ SetCalibrationFileName()

void TRestDataSetGainMap::SetCalibrationFileName ( const std::string & fileName )

inline

Definition at line 95 of file TRestDataSetGainMap.h.

◆ SetCut()

void TRestDataSetGainMap::SetCut ( TRestCut * cut )

inline

Definition at line 105 of file TRestDataSetGainMap.h.

◆ SetModule()

void TRestDataSetGainMap::SetModule ( const Module & moduleCal )

Function to set a module calibration. If the module calibration already exists (same planeId and moduleId), it will be replaced.

Definition at line 441 of file TRestDataSetGainMap.cxx.

◆ SetObservable()

void TRestDataSetGainMap::SetObservable ( const std::string & observable )

inline

Definition at line 98 of file TRestDataSetGainMap.h.

◆ SetOutputFileName()

void TRestDataSetGainMap::SetOutputFileName ( const std::string & fileName )

inline

Definition at line 96 of file TRestDataSetGainMap.h.

◆ SetSpatialObservableX()

void TRestDataSetGainMap::SetSpatialObservableX ( const std::string & spatialObservableX )

inline

Definition at line 99 of file TRestDataSetGainMap.h.

◆ SetSpatialObservableY()

void TRestDataSetGainMap::SetSpatialObservableY ( const std::string & spatialObservableY )

inline

Definition at line 102 of file TRestDataSetGainMap.h.

Field Documentation

◆ fCalibFileName

std::string TRestDataSetGainMap::fCalibFileName = ""

private

Name of the file that contains the calibration data.

Definition at line 59 of file TRestDataSetGainMap.h.

◆ fCut

TRestCut* TRestDataSetGainMap::fCut = nullptr

private

Cut to be applied to the calibration data.

Definition at line 65 of file TRestDataSetGainMap.h.

◆ fModulesCal

std::vector<Module> TRestDataSetGainMap::fModulesCal = {}

private

List of modules.

Definition at line 56 of file TRestDataSetGainMap.h.

◆ fObservable

std::string TRestDataSetGainMap::fObservable = ""

private

Observable that will be used to calculate the gain map.

Definition at line 47 of file TRestDataSetGainMap.h.

◆ fOutputFileName

std::string TRestDataSetGainMap::fOutputFileName = ""

private

Name of the file where the gain map was (or will be) exported.

Definition at line 62 of file TRestDataSetGainMap.h.

◆ fSpatialObservableX

std::string TRestDataSetGainMap::fSpatialObservableX = ""

private

Observable that will be used to segmentize the gain map in the x direction.

Definition at line 50 of file TRestDataSetGainMap.h.

◆ fSpatialObservableY

std::string TRestDataSetGainMap::fSpatialObservableY = ""

private

Observable that will be used to segmentize the gain map in the y direction.

Definition at line 53 of file TRestDataSetGainMap.h.

The documentation for this class was generated from the following files:

Detailed Description

Parameters

Examples

Data Structures

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ TRestDataSetGainMap() [1/2]

◆ TRestDataSetGainMap() [2/2]

◆ ~TRestDataSetGainMap()

Member Function Documentation

◆ CalibrateDataSet()

◆ Export()

◆ GenerateGainMap()

◆ GetCalibrationFileName()

◆ GetCut()

◆ GetInterceptParameter()

◆ GetInterceptParameterFullSpc()

◆ GetModule() [1/2]

◆ GetModule() [2/2]

◆ GetModuleIDs() [1/2]

◆ GetModuleIDs() [2/2]

◆ GetNumberOfModules()

◆ GetNumberOfPlanes()

◆ GetObservable()

◆ GetOutputFileName()

◆ GetPlaneIDs()

◆ GetSlopeParameter()

◆ GetSlopeParameterFullSpc()

◆ GetSpatialObservableX()

◆ GetSpatialObservableY()

◆ Import()

◆ InitFromConfigFile()

◆ Initialize()

◆ operator=()

◆ PrintMetadata()

◆ SetCalibrationFileName()

◆ SetCut()

◆ SetModule()

◆ SetObservable()

◆ SetOutputFileName()

◆ SetSpatialObservableX()

◆ SetSpatialObservableY()

Field Documentation

◆ fCalibFileName

◆ fCut

◆ fModulesCal

◆ fObservable

◆ fOutputFileName

◆ fSpatialObservableX

◆ fSpatialObservableY
